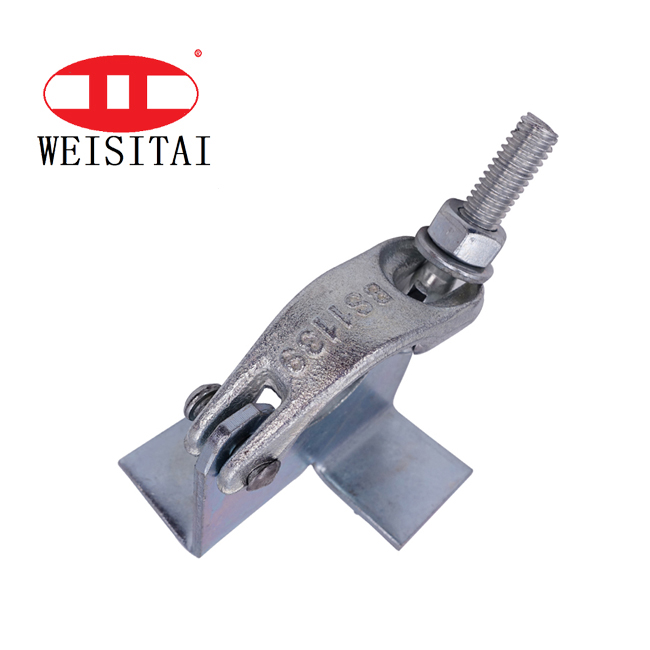

Construction Galvanized Board Retaining Coupler Scaffolding Forged
Coupler
◆Product Overview
Scaffolding Coupler is the main part of the tubular scaffolding
system, it supplys a fasten and conect functions in system. Simple
struction and big loading power, make couplers easier and widely
used by scaffolders on construction project.
We have different types and sizes scaffolding couplers, such as
fixed coupler, swivel coupler, ladder beam coupler, Sleeve
coupler...
Drop forged couplers, is part of the pipe & coupler scaffolding
system, usually used in many cosntruction work.
It supplys a fasten and conect functions in system,make pipe can
use convinient. Simple struction and big loading power, make clamps
easier widely used by scaffolders.
Easy maintenance. Because couplers themselves are not easy to rust
and break, maintenance is very convenient after use, which not only
reduces the difficulty of maintenance, but also saves the
maintenance cost, reduces the manpower and material resources of
maintenance, and increases the efficiency and quality of
construction.
Strong corrosion resistance. After passivation and galvanizing, the
anti-rust ability of the whole piece is greatly improved, and its
service life is long, far exceeding the service life of pressed
couplers.
Strong resistance to stripping. With the new connection, the new
nut ensures that the pressed couplers can be fixed vertically and
firmly in the case of steel tube deformation, eliminating the
possibility of steel tube slippage.
Strong anti-deformation ability. Compared with the ordinary pressed
couplers, because of the different manufacturing process, it breaks
through the limitation of traditional stamping process on material
thickness, which can completely guarantee the non-deformation in
the use process, thus ensuring the safety and reuse of products.
◆Product Parameter
| Types | Fixed girder coupler | Putlog coupler | scaffolding sleeve coupler | Board Retaining couple |
| Sample |  |  |  |  |
| Material | Q235 Carbon Steel | Q235 Carbon Steel | Q235 Carbon Steel | Q235 Carbon Steel |
|
|
|
|
| Diameter | 48.3*48.3MM | 48.3*48.3MM | 48.3*48.3MM | 48.3*48.3MM |
| wight | 1.5kg | 0.62kg | 0.98kg | 0.6kg |
| Surface treatment | Electric galvanized,silver color | Electric galvanized,silver color | Electric galvanized,silver color | Electric galvanized,silver color |
| Craft | pressed | pressed | pressed | pressed |
| Application | connect the scaffolding tube | connect the scaffolding tube | connect the scaffolding tube | connect the scaffolding tube |
◆Product Advantage
1. Impeccable finish and dimensional accuracy.
2. It's electro galvanized, hot dip galvanized finish, can make
sure the longer life span.
3. Passed the SGS testing report, has high loading capacity.
4.Application specific design therefore easy to install.
