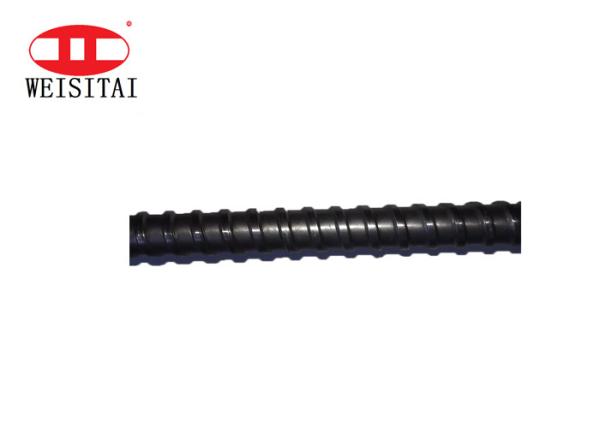

High Strength Tie Rod Formwork Tie Rod System Dywidag Threaded Rod
◆Product Overview
WST formwork system tie rods are made of Q235 steel or 45# steel
and with self finish , galvanized finish or HDG finish. they are
relatively strong in construction and used in industrial as well as
housing sectors. With accurate dimension and high tensile strength,
our tie rods have been exported to more than 33 countries. All
formwork tie rod accessories also available in our factory.
WST formwork tie rods are relatively strong in construction, and
were used in industrial as well as housing sectors. All formwork
tie rod accessories also available in our factory,including tie
nuts, water stopper, steel cone, hex nut etc.
◆Product Parameter
| Tie rod types | Half thread Tie rod |
| Pics |  |
|
|
|
| Material | High strength steel |
| Diameter | 15/17mm |
| Pitch | 10mm |
| Length | 1-6m |
| Weight | 1.5kg |
| Finish | Natural |
| Color | Original self color |
| Craft | Cold rolled |
| Strength | 180-190KN |
|
| Other name | Formwork dywidag tie bar,Formwork tie bar system |
◆Product Advantage
1.Rolling wire:High-precision thread rolling
2.Cut off:Ensure the specifications of each workpiece
3. Various material: Q235 steel, 45# steel and PSB830 hot rolled
steel are all available
4. High Stength: from 4.5ton to 20tons, we could supply test report
for checking
◆We also manufacture
1. Formwork accessories: formwork tie rod,waller plate,anchor
nut,wing nut,water stopper,hex nut,climbing cone nut,formwork
clamp,rapid clamp etc.
2. Scaffolding accessories: Hollow/Solid adjustable base jack, U
head, universal base jack,adjustable jack nut,thread rod.
3. Steel prop parts: Prop sleeve, prop plate, prop nut, prop pins.
4. Cuplock parts: Top cup, bottom cup, ledger blade.
5. Ringlok parts: Ringlock rosette, ledger end, brace endwedge pin.
6. Scaffolding Couplers : Pressed and drop forged swivel coupler,
pressed or drop forged fixed coupler
7. Specail products : U clip , hook set, small base plate etc.
