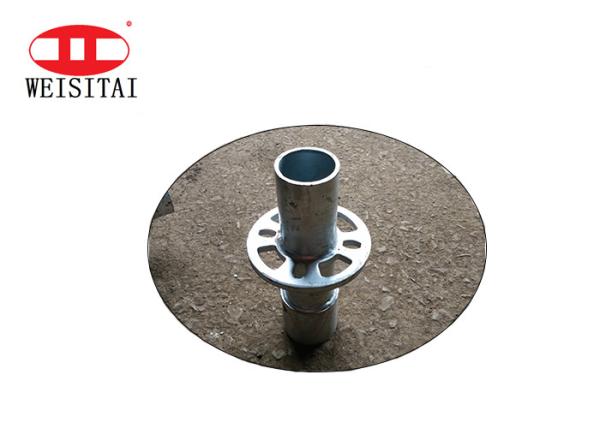

Construction Accessories Rosette Scaffold Galvanized Ring Lock
Scaffolding Parts
◆Product Overview
Ring Lock Scaffolding is a new type of scaffold.It is also called
chrysanthemum disc scaffold system, plug-in disc scaffold system,
wheel type scaffold system, buckle type scaffold system, layer
frame and layer frame (because the basic principle of the scaffold
is invented by layher (Leia) Company in Germany, and is also known
as "Laya frame" by the industry. It is mainly used for lighting
frame and background frame of large-scale concert. )Ring Lock
Scaffolding is the upgrading product after the bowl buckle
scaffold. The socket of the scaffold is a disc with a diameter of
133 mm and a thickness of 10 mm. Eight holes are set on the disc.
The steel pipe of diameter 48 * 3.5 mm and Q345B is used as the
main component. A disc is welded on the steel pipe of a certain
length every 0.60 m. The New and beautiful disc is used to connect
the cross bar, and the bottom is provided with a connecting sleeve.
The cross bar is made of plug with bolt welded on both ends of
steel pipe.
The extremely flexible nature of Ring Lock Scaffolding Parts allows
you to speed up the process and complete it in just few minutes.
WST Scaffolding's Ring Lock Scaffolding Parts for the Industrial,
Commercial & Residential Markets are designed and manufactured to
meet all scaffolding industry standards.
Our broad selection of Ring Lock Scaffolding Parts products and
accessories, include vertical posts, horizontal ledgers, bay
braces, board brackets and more.
Installation method:
During installation, just align the cross bar joint with the
chrysanthemum plate position, and then insert the bolt into the
chrysanthemum plate hole by hand and go through the bottom of the
joint, and then knock the top of the bolt with a hammer to make the
arc surface of the cross bar joint closely connect with the
vertical pole.
◆Product Parameter
| material | Q235 Steel |
| finish | Original ,Electro Galvanized,HDG |
| color | Self Color, Silver or golden color |
| matched tube | 48mm | 60mm |
| thickness | 7.75/9.75mm | 7.75/9.75mm |
| inner dia | 50mm | 62mm |
| weight | 0.38/0.46kg | 0.46/0.55kg |
| application | For Ringlock system connection |
◆Product Advantage
1. Quick erection: Ringlock scaffold are all pre-measured and just
a hammer is required when erection.
2.Handige transport en opslag.
3. Lage maintenace, De thermisch verzinkt afwerking zal laatste
leven van het, Geen verf nodig.
4. Corrode-resistantace, slip prevention, anti-fire, less weight.
5.Sadety: The reliable wedge conections prevent ledgers and
diagonal braces from any kind ofloosening,The rigid, right fit of
all connections with concentric
