Complete Specifications Steel Scaffolding Braces Frame Scaffolding Parts

◆Product Overview

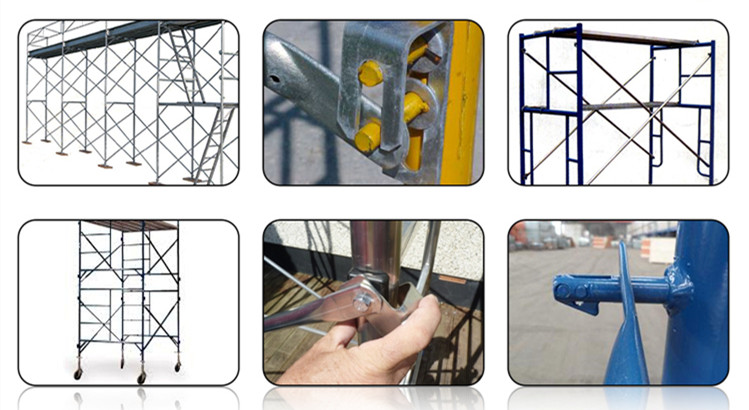

Frame scaffolding is one of the most common types of scaffolding seen on construction sites.The Frame system is divided into H frame and walkthrough frame. Mainly composed of mainframe, cross brace, catwalk, and base jack. It can be used not only for internal and external scaffolding in construction but also for supporting bridges or simple moving scaffolding.

H-frames are the efficient and cost-effective method for erecting scaffolding at maximum height with minimum labor and tools. By utilizing one size or a combination of varying sizes of H-Frames, towers or an array can be erected to the exact height required for the job. This rigid way free structure has no loose fittings and no tools are required for erection. If can be quickly and easily erected even by unskilled labor without any supervision.

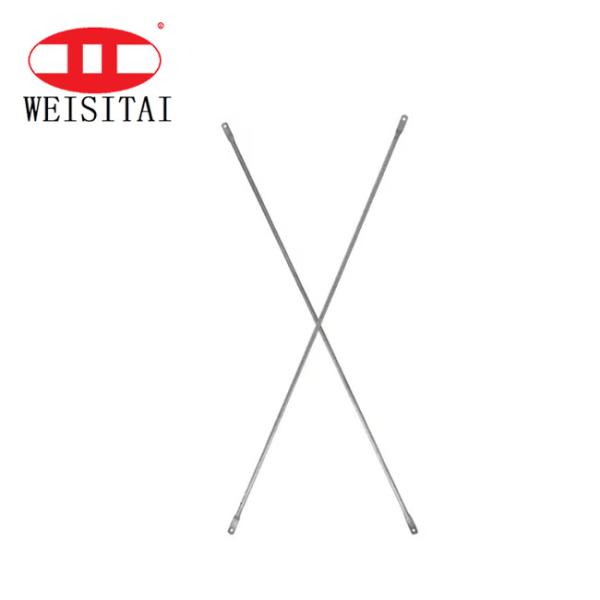

Scaffolding cross brace are used to connect the scaffolding frame, made of pre-galvanized pipe. with good anti-rust capacity and different size , our cross brace suit for both developed market and undeveloped market.

Cross braces galvanized entireley, for maximum longevity. We dip our cross brace tubes before manufacture, so that the entire inside is coated. Many of our competitors dip after the ends are pressed, allowing only low coverage on the inside of their braces. Check your cross braces, if they have a small hole drilled on each end, they were dipped after being pressed.

◆Product Parameter

Accessories type	Cross brace	Cross brace	Cross brace
Sample
Material	Q195 Steel	Q195 Steel	Q195 Steel
Surface treatment	Pre galvanized,silver color
Diameter	20mm	22mm	25mm
Thickness	1.0-1.3mm	1.0mm	1.0-1.2mm
Length	1928/2045/2198mm or customized
Weight	1.8-2.6kg	2kg	2.2-3kg

◆Product Advantage

1. A variety of models are available. We can provide a ladder frame and walkthrough, light and heavy-duty, regular frame, and American frame.

2. Easy to build. The frame is mainly connected by a locking pin, which will be very quick and convenient.

3. Safe and reliable. The frame system connections form a system that ensures safety and stability.

Cangzhou Weisitai Scaffolding Co.,Ltd is established on 2010, located in Cangzhou City,Hebei Province,China. We mainly manufacture and export scaffolding accessories, formwork accessories and prop accessories etc.

Our CEO Mr Cui has been in the scaffolding and formwork parts business line for nearly 20years, he has rich experience and resources of the product and technology. 10years ago,considering that most of raw material factories are near Cangzhou, he decided to come back hometown and established our company WST.

During past 10 years, WST has owned two factories and one trading company, there are 30000M2 working space, 95 sets of equipments and 100+ experienced workers.

With mature rolling,stamping,welding and casting techniques etc, our annual output are 8000 tons adjustable base jack, 4000 tons screw tie rod, 5000 tons casting products, 2000 tons steel prop parts etc. And our products have been exported to over 30 countries and regions in Southeast Asia,The Middle East, Europe and America, including Singapore,Thailand,USA,UK,UAE,Russian,Norway,Morocco,Bangladesh etc.

On 2020, we also have passed ISO9000 Quality Management System Certification, to supply customers products and service of "stable quality, stable quantity,cost-effective" is our eternal pursuit.

Welcome every customer to sending us inquiry , Welcome every customer to visit us !
