Support Cup Steel Prop Nut Scaffolding Spare Parts

    Buy cheap Support Cup Steel Prop Nut Scaffolding Spare Parts from wholesalers

    Buy cheap Support Cup Steel Prop Nut Scaffolding Spare Parts from wholesalers
    • Buy cheap Support Cup Steel Prop Nut Scaffolding Spare Parts from wholesalers
    • Buy cheap Support Cup Steel Prop Nut Scaffolding Spare Parts from wholesalers

    Support Cup Steel Prop Nut Scaffolding Spare Parts

    Ask Lasest Price
    Brand Name : WST
    Model Number : SP057
    Certification : CMA ISO
    Price : Price Negotiation
    Payment Terms : L/C, T/T, Western Union, Alibaba trade assurance
    Supply Ability : 20 ton/day
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

    Support Cup Steel Prop Nut Scaffolding Spare Parts

    Support Cup Steel Prop Nut Steel Scaffolding Prop Parts

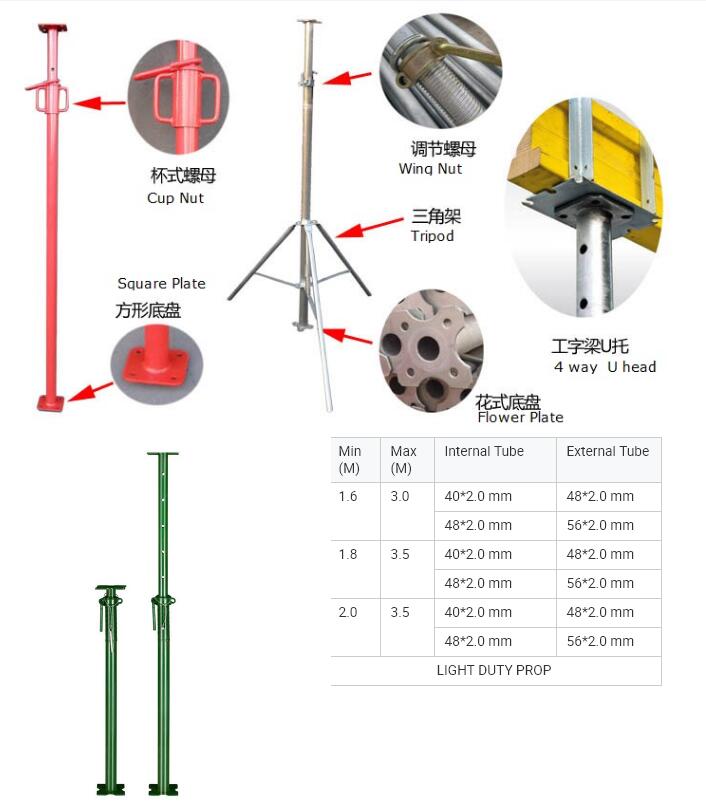

    ◆Prop Cup Nut Overview


    Steel prop is mainly made of bottom plate,outer tube,inner tube,sleeve&nut pin,top&bottom plate and the accessories of folding tripod,head jack.The structure is simple and flexible.The prop cup nut is simple,so it is easy to assemble and disassemble.The prop cup nut can extend and shrink in the outer so that steel prop is adjustable.It also can be adjusted according to the required height.The steel prop can be reused.Even though it is out of work,the material can also be recycled.Steel prop can be adjusted according to the different height on the buildings.


    Prop Cup Nut Parameter

    1. Heavy Duty Prop(With Normal Nut)
    Min
    Max
    Inner Tube
    Outer Tube
    1.8
    3.2
    48*2.0mm
    60*2.0mm
    2
    3.6
    48*2.0mm
    60*2.0mm
    2.2
    3.9
    48*2.0mm
    60*2.0mm
    2.5
    4.5
    48*2.0mm
    60*2.0mm
    3
    5.5
    48*2.0mm
    60*2.0mm
    2. Light Type Prop(With Cup Nut)
    Min
    Max
    Inner Tube
    Outer Tube
    1.7mm
    3.0mm
    40*2.0mm
    48*2.0mm
    40*2.0mm
    56*2.0mm
    1.8mm
    3.2mm
    40*2.0mm
    48*2.0mm
    40*2.0mm
    56*2.0mm
    2.0mm
    3.5mm
    40*2.0mm
    48*2.0mm
    40*2.0mm
    56*2.0mm

    Prop Cup Nut Advantage


    1.Surface is smooth, without flow paint and less paint.
    2.Welding is full, without lack and fake welding.
    3.Tolerence Control is strict.
    4.Packing must be strong and easy for handle.



    For more details, just click here to download product catalog

    Shore prop Accessories.pdf
